Linear Models

Prerequisites

• Deep Learning Setup : Setup workspace and download python libraries

Learning Objectives

1. Getting the Data
2. Training and Test Data
3. Training the Model
4. Saving Models

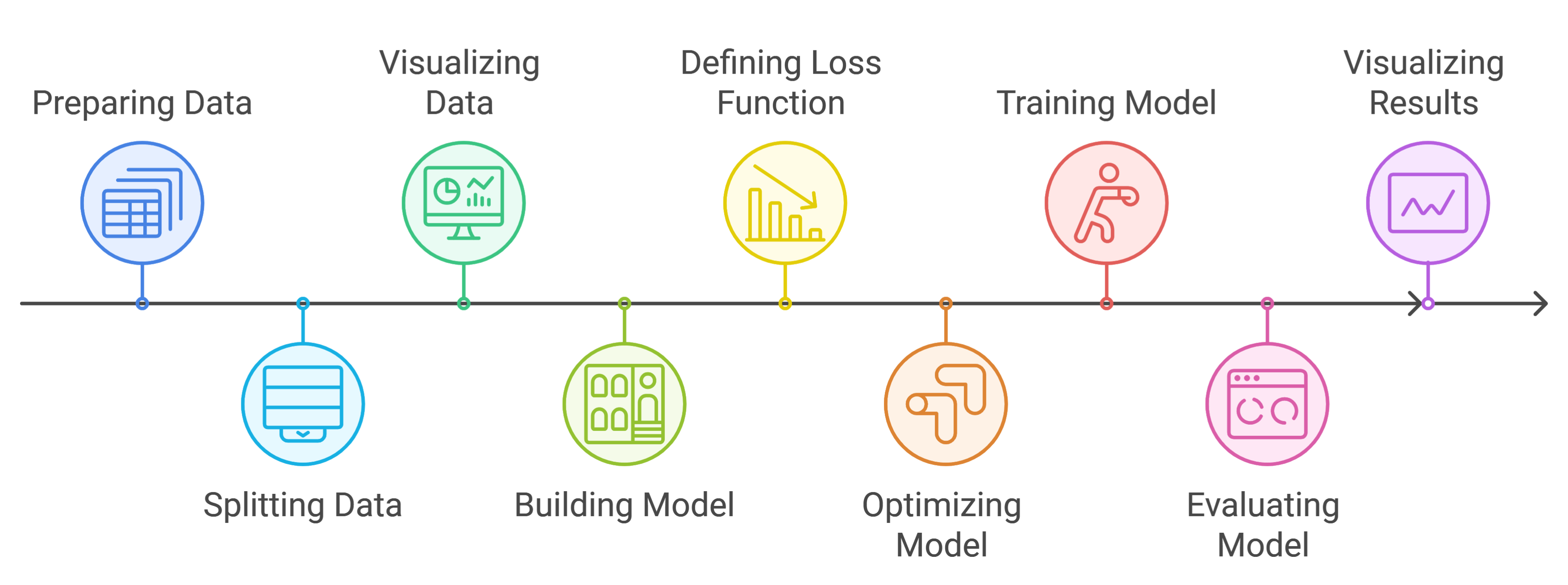

Overview of Linear Regression with PyTorch

Generated with Napkin

1. Getting the Data

Perhaps the easiest way to get started with deep learning is to predict the values from a simple linear model: \(y = weight*x + bias\). This line can be thought of as a set of predicted values and the distance from those values to the real points is the error:

Diagram of a Best Fit Line

We are going to start with a simple example of a line where we know the slope (i.e. the weight), the bias (i.e. the y intercept) and fill it with values from 0 to 1 that increase by 0.02 each value.

import torch
import plotly.graph_objects as go

# Create a simple linear dataset
weight = 0.8
bias = 0.2
X = torch.arange(0, 1, 0.02).unsqueeze(1)
y = weight * X + bias

2. Training and Test Data

When we work with models, we often want to train our model to predict some result and then test it to see if it is working. Usually we allocate the majority of the data (in this case 80%) to the training data, and a minority of the data (20%) as our testing data.

# Split data into training and test sets (80/20 split)
train_split = int(0.8 * len(X))
X_train, y_train = X[:train_split], y[:train_split]
X_test, y_test = X[train_split:], y[train_split:]

When working with data, it is critical that we visually inspect it! You would be suprised how many mistakes or eureka moments can happen just by making a graph. Here we will use plotly to plot our training data, testing data and any predictions we might make.

# Plot data using Plotly
def plot_predictions(train_data, train_labels, test_data, test_labels, predictions=None):
    fig = go.Figure()

    # Plot training data
    fig.add_trace(go.Scatter(x=train_data.squeeze(), y=train_labels.squeeze(), mode='markers', name='Training Data', marker=dict(color='#1c4f96')))

    # Plot testing data
    fig.add_trace(go.Scatter(x=test_data.squeeze(), y=test_labels.squeeze(), mode='markers', name='Testing Data', marker=dict(color='#f58160')))

    # Plot predictions if available
    if predictions is not None:
        fig.add_trace(go.Scatter(x=test_data.squeeze(), y=predictions.squeeze(), mode='markers', name='Predictions', marker=dict(color='#8f3974')))

    # Update layout
    fig.update_layout(
        xaxis_title='X',
        yaxis_title='Y',
        template='plotly_white'
    )
    # Show the plot
    fig.show()

plot_predictions(X_train, y_train, X_test, y_test)

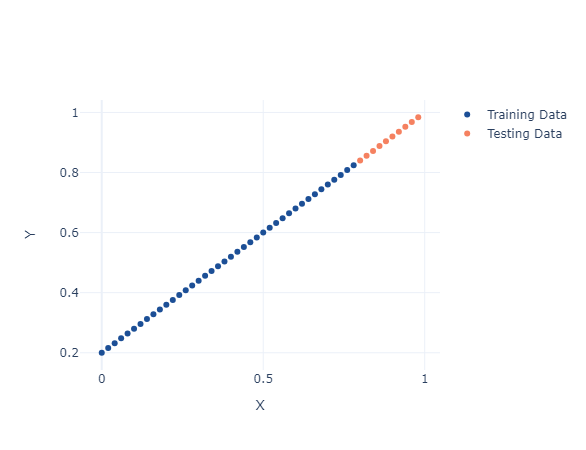

Features v. Outcome for Testing and Training Data

To create a model we will start by defining a few things. We are goint to make a class, LrModel. A class is essentially a map for creating objects and has methods and attributes: - Attributes are variables that belong to the class - Methods are functions inside that class that help perform some function

If we use this class on some data that is an instance of the class. Now here we define one layer, linear with one input and one output. Then we define a method, forward where the output of the single layer is returned. This is essentially describing how inputs move through the model. You'll note that after we initiate the model, we print it's initial random parameters with model.state_dict.

import torch.nn as nn

# Define a linear regression model
class LrModel(nn.Module): # ensure that nn.Module is inherited
    def __init__(self):
        super().__init__()
        self.linear = nn.Linear(in_features=1, out_features=1) # define one layer, with one input and one output

    def forward(self, x): # create a method, that will return the output of the one layer, this describes how inputs move through the model
        return self.linear(x)

# Initiate the model
model = LrModel() # initiate the model and create an instance!

# Check initial parameters
print(model.state_dict())

3. Training the Model

Ok so we have the shell of a model, now we need to train it on our data so that it can make predictions! To do this we are going to introduce a couple concepts:

• Loss Function: measures how far off the predictions are from the real data points. Here we are using the L1 loss AKA Mean Absolute Error (MAE).
• Optimizer: The optimizer will update the parameters of the model in order to minimize the loss. Here we are using stochastic gradient descent with a learning rate, which controls how big the updates are, of 0.01
• Epoch: An epoch is just how many times the model is reevaluated, and parameters are updated.
• Backpropagation: This involves calculating the loss from your input and then using this information you backpropagate that information into the model to update the weights. Essentially, allowing the model to learn and improve it's predictions.
• Gradient Descent: So we are left with a question - what weights, lead to the smallest loss value? To get to this minimum we need to use gradient descent, where we calculate the derivative of the loss function with respect to the model weights to get to some minimum loss value that has our desired model weight!

Gradient Descent

Adapted from the carpentries tutorial on deep learning

# Loss function and optimizer
loss_fn = nn.L1Loss()
optimizer = torch.optim.SGD(model.parameters(), lr=0.01)

# Training loop
epochs = 500
train_loss_vals = []
test_loss_vals = []
epoch_vals = []

for epoch in range(epochs):
    model.train()  # Set model to training mode
    y_pred = model(X_train)  # Forward pass
    loss = loss_fn(y_pred, y_train)  # Calculate loss

    optimizer.zero_grad()  # Zero gradients so that we clear updates from the updates from the previous step
    loss.backward()  # Backpropagation to calculate how each parameter affects the error
    optimizer.step()  # Update parameters or weights to reduce that error

    # Evaluate every 50 epochs
    if epoch % 50 == 0:
        model.eval() # set the model in evaluation mode
        with torch.inference_mode(): # get into inference mode
            test_pred = model(X_test)
            test_loss = loss_fn(test_pred, y_test)
            train_loss_vals.append(loss.detach().numpy())
            test_loss_vals.append(test_loss.detach().numpy())
            epoch_vals.append(epoch)
            print(f"Epoch {epoch}: Train Loss = {loss.item()}, Test Loss = {test_loss.item()}")

We should point out how we are using torch's inference mode, with torch.inference_mode(), to make predictions. This will stop gradient calculations in order to evaluate our model in a memory efficient way. Now let's take a look at the relationship between the number of epochs and the losses for both the test and training data.

# define a function for plotting losses v. epochs
def plot_epoch_losses(epochs, train_losses, test_losses):
    fig = go.Figure()

    # Plot training losses
    fig.add_trace(go.Scatter(x=epochs, y=train_losses, mode='lines', name='Training Loss', marker=dict(color='#1c4f96')))

    # Plot testing losses
    fig.add_trace(go.Scatter(x=epochs, y=test_losses, mode='lines', name='Testing Loss', marker=dict(color='#f58160')))

    # Update layout
    fig.update_layout(
        title='Training and Testing Losses vs Epochs',
        xaxis_title='Epochs',
        yaxis_title='Loss',
        legend_title='Legend',
        template='plotly_white'
    )

    # Show the plot
    fig.show()

plot_epoch_losses(epoch_vals, train_loss_vals, test_loss_vals)

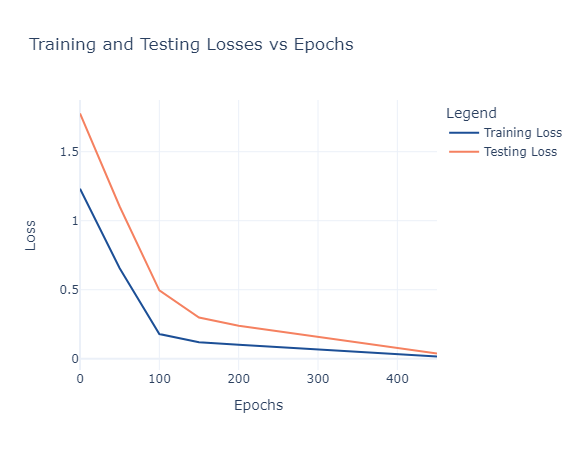

Epochs v. Loss

Here we see that the testing error is higher than the training data for the first few hundred epochs until around epoch 300. Now that we have trained our model and see that the loss is quite low, let's compare these predicted values back to the original values.

# Make predictions after training
model.eval()
with torch.inference_mode():
    y_preds = model(X_test)

# Plot predictions using Plotly
plot_predictions(X_train, y_train, X_test, y_test, y_preds)

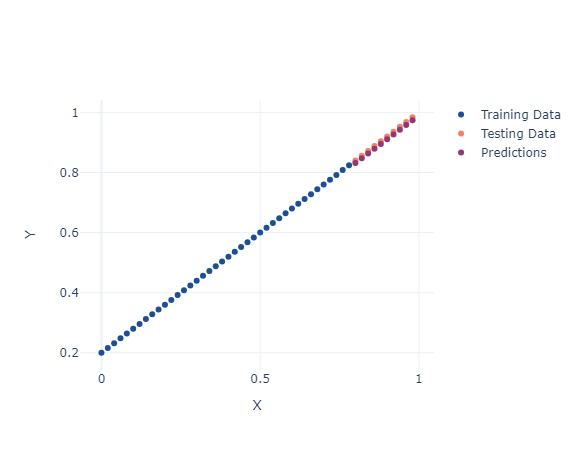

True and Predicted Data

They look great! The predicted values appear to track both tested and traing values well!

4. Saving Models

To save your model, you can use torch.save and save the current state of the model with model.state_dict and then designate where to put your model with a file name (here we call it lr_model.pth).

# Save model
torch.save(model.state_dict(), "lr_model.pth")

Now to load this model we can use torch.load and then the path to our model file name, lr_model.pth.

# Load model
loaded_model = LrModel()
loaded_model.load_state_dict(torch.load("lr_model.pth"))

5. Into the Neuralverse

We have created a simple situation where there is one input and one output. However, the power in deep learning lies in connecting what we call nodes into complex architectures, which we typically call our input layer, a set of hidden layers and an output layer:

Neural Network Architecture Overview

What does each node look like though? Well each node is like a neuron, it takes a set of inputs, processes them and creates an output.

Neural Network Node Overview

Here we see that each node is the sum of the products of the variables and weights, then that sum is fed through an activation function, which decides, hey is that sum enough to trigger an output. We will get more into that later though!

Key Points

• It is a good idea to break your data into two parts, training and testing, to see how well your model might do with outside data
• A simple linear model is composed of a \(y = weight*x + bias\)
• The model weights are updated each time the model is trained (an epoch), where the weights are updated as to minimize the loss, or how far off the predicted data points are from the true data points.
• Save your models to use later or on other data
